Pipe bending machines play a critical role in modern manufacturing. From automotive exhaust systems and furniture frames to aerospace tubing and industrial process pipelines, accurately bent tubes and pipes are essential for product quality, structural integrity, and production efficiency.
As manufacturers continue to automate production and improve quality standards, the demand for CNC pipe bending machines, automatic tube bending systems, and intelligent production lines has increased significantly. Companies seeking higher productivity and lower labor costs are investing in advanced pipe bending technologies that deliver consistent, repeatable results.
This guide explains everything buyers need to know about pipe bending machines, including working principles, machine types, applications, advantages, selection criteria, cost considerations, maintenance practices, and future industry trends.
A pipe bending machine is a specialized manufacturing system designed to form metal pipes and tubes into predetermined shapes and angles without compromising material strength.
Unlike manual bending methods, modern pipe bending machines use mechanical, hydraulic, electrical, or CNC-controlled systems to achieve accurate bends while minimizing deformation, wrinkling, and wall thinning.
Common materials processed include:
• Carbon steel
• Stainless steel
• Aluminum
• Copper
• Titanium alloys
• Brass
• High-strength alloy tubing
Pipe bending machines are available in various configurations, ranging from manual and semi-automatic equipment to sophisticated CNC multi-axis systems capable of producing complex three-dimensional bending geometries.

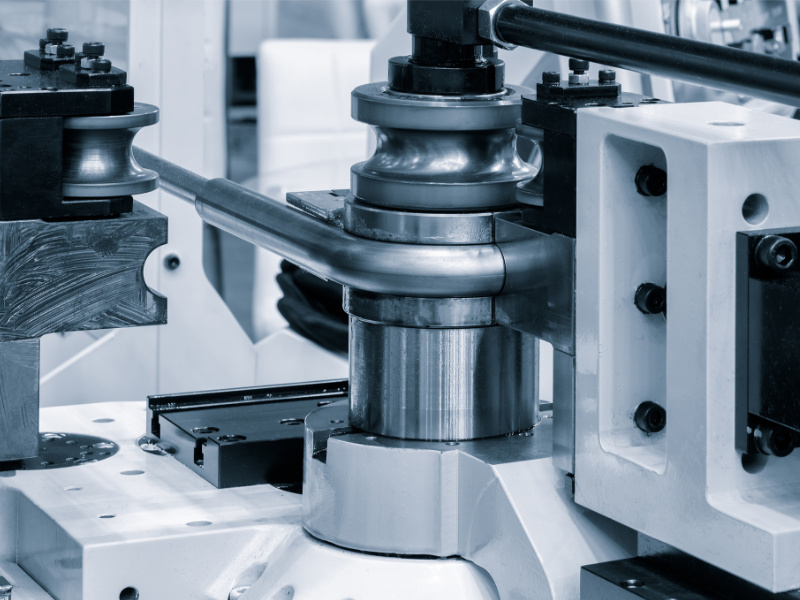

The bending process typically involves securing the tube while applying force around a bending die. Depending on the technology used, the machine controls parameters such as feed length, bend angle, rotation angle, bend radius, and material positioning.
A typical CNC pipe bending machine follows these steps:
1. Tube Loading
The operator or automatic feeding system loads the tube.
2. Positioning
The machine positions the tube according to programmed dimensions.
3. Clamping
Specialized clamps hold the tube securely.
4. Bending
The bending arm rotates around the die to achieve the required angle.
5. Rotation
The tube rotates between bends for multi-plane geometries.
6. Unloading
Finished components are automatically discharged or transferred.
This process ensures excellent repeatability and significantly reduces production errors.
Manufacturers can choose from several machine categories.
Manual Pipe Bending Machines
These machines are suitable for small workshops, repair operations, and low-volume production.
Hydraulic Pipe Bending Machines
Hydraulic systems provide greater force and are commonly used for thicker-walled tubes and larger diameters.
NC Pipe Bending Machines
Numerical control machines automate bending angles and improve consistency.
CNC Pipe Bending Machines
CNC systems offer advanced automation, programmable operation, data storage, and multi-axis movement.
Fully Automatic Pipe Bending Machines
These solutions integrate loading, feeding, bending, cutting, unloading, and quality control functions into a complete production line.
Among these options, CNC pipe bending machines remain the preferred choice for industrial manufacturers seeking high productivity and precision.
One of the most common purchasing questions is whether to choose CNC or hydraulic technology.
CNC Pipe Bending Machine Advantages:
• High accuracy and repeatability
• Fast changeovers
• Complex multi-bend capability
• Reduced labor requirements
• Data storage and production traceability
Hydraulic Pipe Bending Machine Advantages:
• Lower investment cost
• Simple operation
• Suitable for basic bending requirements
• Easier maintenance
For companies producing high volumes or complex components, CNC systems usually provide better long-term return on investment.
Semi-automatic machines require operator intervention during part loading and positioning. Automatic systems handle most production tasks independently.
Benefits of Automatic Systems:
• Higher throughput
• Reduced labor costs
• Consistent quality
• Lower scrap rates
• Better production planning
Benefits of Semi-Automatic Systems:
• Lower acquisition cost
• Greater flexibility for custom jobs
• Suitable for small and medium production volumes
The decision depends on production volume, labor availability, and budget considerations.
Automotive Industry
Vehicle manufacturers use bent tubing for exhaust systems, fuel lines, brake lines, chassis structures, and seat frames.
Aerospace Industry
Aircraft systems require lightweight, high-precision tubing capable of meeting strict safety standards.
Furniture Manufacturing
Metal furniture frames rely heavily on tube bending technology for aesthetics and structural performance.
Construction Industry
Handrails, guardrails, structural supports, and architectural features frequently incorporate bent tubing.
HVAC Systems
Heating, ventilation, and air-conditioning equipment requires precise copper and steel tube assemblies.
Energy Industry
Oil, gas, power generation, and renewable energy projects use bent piping systems for fluid transport and structural applications.
Medical Equipment
Medical device manufacturers often require highly accurate tube bending for specialized equipment and support structures.
Improved Accuracy
Advanced control systems eliminate many human errors associated with manual processes.
Higher Productivity
Automation significantly increases output while reducing cycle times.
Reduced Scrap
Precise control minimizes material waste and rework.
Consistent Quality
Every part can be produced according to identical specifications.
Lower Labor Costs
Fewer operators are needed to achieve higher production volumes.
Enhanced Flexibility
Stored programs allow rapid switching between products.
Better Traceability
Production data can be stored, monitored, and analyzed for quality assurance.
Selecting the right equipment requires evaluating several factors.
Tube Diameter Range
Ensure the machine accommodates your largest and smallest tube sizes.
Wall Thickness
Thicker materials may require higher bending forces.
Material Type
Different materials exhibit different bending characteristics.
Production Volume
Higher production levels often justify greater automation.
Bending Complexity
Complex geometries require advanced CNC capabilities.
Space Availability
Factory layout influences machine configuration choices.
Budget
Initial investment should be evaluated alongside long-term operating costs.
After-Sales Support
Reliable technical support, training, and spare parts availability are essential.
Pipe bending machine pricing varies considerably depending on machine type, capacity, automation level, and customization requirements.
Factors Affecting Cost:
• Number of CNC axes
• Maximum tube diameter
• Automation level
• Tooling packages
• Software capabilities
• Material handling systems
• Safety features
Although fully automatic systems require higher initial investment, many manufacturers achieve rapid payback through improved productivity and reduced labor expenses.
When evaluating costs, buyers should consider total cost of ownership rather than purchase price alone.
Wrinkling
Often caused by inadequate support or incorrect tooling.
Wall Thinning
Can occur when bend radius is too tight.
Ovality
Results from improper machine setup or unsuitable tooling.
Springback
Occurs when material returns partially to its original shape after bending.
Surface Scratches
Typically caused by worn tooling or improper lubrication.
Proper machine configuration, tooling selection, and process optimization can significantly reduce these issues.
Routine maintenance is essential for maximizing machine life and ensuring stable production.
Daily Maintenance:
• Clean machine surfaces
• Inspect lubrication systems
• Check hydraulic pressure
• Verify safety devices
Weekly Maintenance:
• Inspect tooling condition
• Tighten fasteners
• Examine electrical connections
Monthly Maintenance:
• Review calibration accuracy
• Inspect servo systems
• Analyze hydraulic performance
Preventive maintenance reduces downtime and extends equipment lifespan.
The pipe bending industry is rapidly evolving.
Industry 4.0 Integration
Manufacturers increasingly connect machines to factory networks for real-time monitoring.
Artificial Intelligence
AI-driven optimization improves productivity and predictive maintenance.
Digital Twin Technology
Virtual simulations reduce setup time and improve process planning.
Robotic Automation
Integrated robots enhance loading, unloading, and material handling.
Energy Efficiency
New machine designs reduce power consumption and environmental impact.
These innovations are helping manufacturers achieve greater competitiveness in global markets.
A tube processing company producing automotive exhaust components experienced challenges with labor shortages and inconsistent quality.
After implementing a CNC automatic pipe bending machine, the company achieved:
• 45% increase in output
• 30% reduction in labor requirements
• 25% reduction in scrap
• Improved dimensional consistency
• Faster product changeovers
The investment was recovered within two years through productivity improvements and reduced operating costs.
Q1: What materials can be bent using a pipe bending machine?
A: Carbon steel, stainless steel, aluminum, copper, brass, titanium, and many specialty alloys.
Q2: What is the difference between pipe bending and tube bending?
A: Pipe is generally specified by internal diameter, while tube is specified by external dimensions. The bending principles are similar.
Q3: What industries use CNC pipe bending machines?
A: Automotive, aerospace, furniture, construction, HVAC, energy, marine, and medical industries.
Q4: How accurate are CNC pipe bending machines?
A: Modern systems can achieve extremely tight tolerances with excellent repeatability.
Q5: How do I select the correct bending radius?
A: The appropriate radius depends on material type, wall thickness, diameter, and application requirements.
Q6: Can pipe bending machines be integrated into production lines?
A: Yes. Many manufacturers implement fully automated bending, cutting, and handling systems.
Q7: How often should tooling be replaced?
A: Replacement intervals depend on material type, production volume, and maintenance practices.
Wonsten Group is committed to providing advanced pipe bending solutions designed for modern manufacturing environments.
Key Advantages:
• Comprehensive machine portfolio
• Advanced CNC technology
• Custom engineering solutions
• Global technical support
• Reliable quality control
• Competitive pricing
• Industry-specific expertise
Whether you require a standalone CNC pipe bending machine or a fully automated production line, Wonsten Group can provide solutions tailored to your operational requirements.
Pipe bending machines have become essential equipment across numerous industries. As production requirements become increasingly demanding, manufacturers are turning to CNC and automated systems to achieve higher productivity, improved accuracy, and lower operating costs.
By carefully evaluating production requirements, material specifications, automation needs, and long-term business objectives, companies can select equipment that delivers sustainable competitive advantages.
For organizations seeking reliable, efficient, and future-ready tube processing solutions, investing in advanced pipe bending technology represents a strategic decision that can generate significant returns for years to come.
