How Does CNC Improve Marine Pipe Fabrication?
CNC (Computer Numerical Control) automation improves marine pipe fabrication by replacing manual measurements with programmed, multi-axis control. This ensures exact repeatability across complex isometric pipe spools, controls wall thinning in high-pressure lines, and speeds up production cycles for large-scale vessel construction.

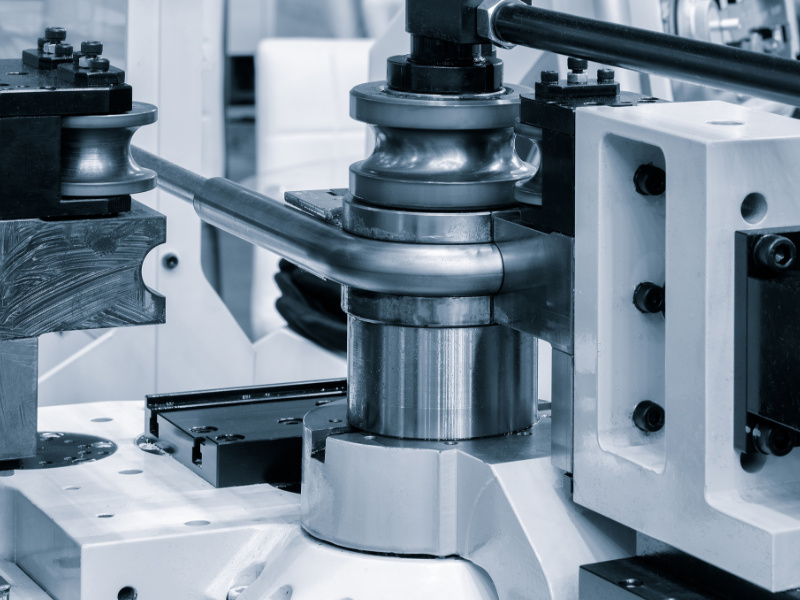

In shipbuilding, manual pipe bending creates bottlenecks. A single vessel requires thousands of custom pipe configurations for its exhaust systems, air conditioning, and structural components. CNC heavy-duty pipe benders automate the feeding, rotation, and bending sequences, significantly reducing manual intervention and shortening overall manufacturing cycles.
Marine piping relies on specific materials that react unpredictably to manual bending methods. CNC machines provide the required force and micro-adjustments needed for these metals.
Copper-nickel alloys (such as ASTM B466 / UNS C70600) are standard for marine cooling and desalination systems due to their anti-fouling properties. However, improper bending causes stress corrosion cracking. CNC mandrel benders regulate the exact pressure applied to the tube, ensuring the protective film of the alloy remains intact and fluids drain without moisture buildup.
Duplex steels (2205 / S31803) have a mixed microstructure that delivers high yield strength. Bending these materials requires machines with heavy-duty servo motors and hydraulic boosters. CNC systems calculate the exact spring-back of Duplex steel, over-bending the material by the precise degree needed so it returns to the target angle without requiring secondary manual correction.
When outfitting a marine fabrication facility, engineers specify CNC machines based on:
Multi-Axis Control: Machines with up to 6 controlled axes for complex, 3D pipe routing.
Military Spec Compliance: The ability to bend materials meeting MIL-T-16420 specifications without structural degradation.
Tooling Versatility: Quick-change tooling systems to switch between standard carbon steel hydraulic lines and specialized copper-nickel exhaust piping.
