So, you’ve got a brilliant design for a new aluminum extrusion profile. The CAD file is perfect, the alloy is chosen, and you’re ready to bring your idea to life. But then comes the million-dollar question that can make or break your project before it even hits the run-out table: what press force do you actually need?
Choosing the correct press force isn't just a technical box to tick; it’s the fundamental bridge between your design and a high-quality, cost-effective product. Get it wrong, and you risk everything from surface defects to catastrophic press stoppages. Get it right, and you achieve a flawless, efficient extrusion every time.
Let’s break down the key factors that will guide you to that "sweet spot."
1. It All Starts with the Alloy and Profile Complexity
Not all aluminum is created equal. The alloy you choose has a direct correlation to the force required.
Softer Alloys (e.g., 1000 & 6000 Series): Alloys like 6061 and 6063 are the workhorses of the industry for a reason. They are highly extrudable and require less force. A simpler solid profile in 6063 might be perfectly happy on a lower-tonnage press.
Harder Alloys (e.g., 2000 & 7000 Series): Alloys like 2024 or 7075 are much stronger and have higher resistance to deformation. Extruding these demands significantly higher press forces to push the billet through the die.

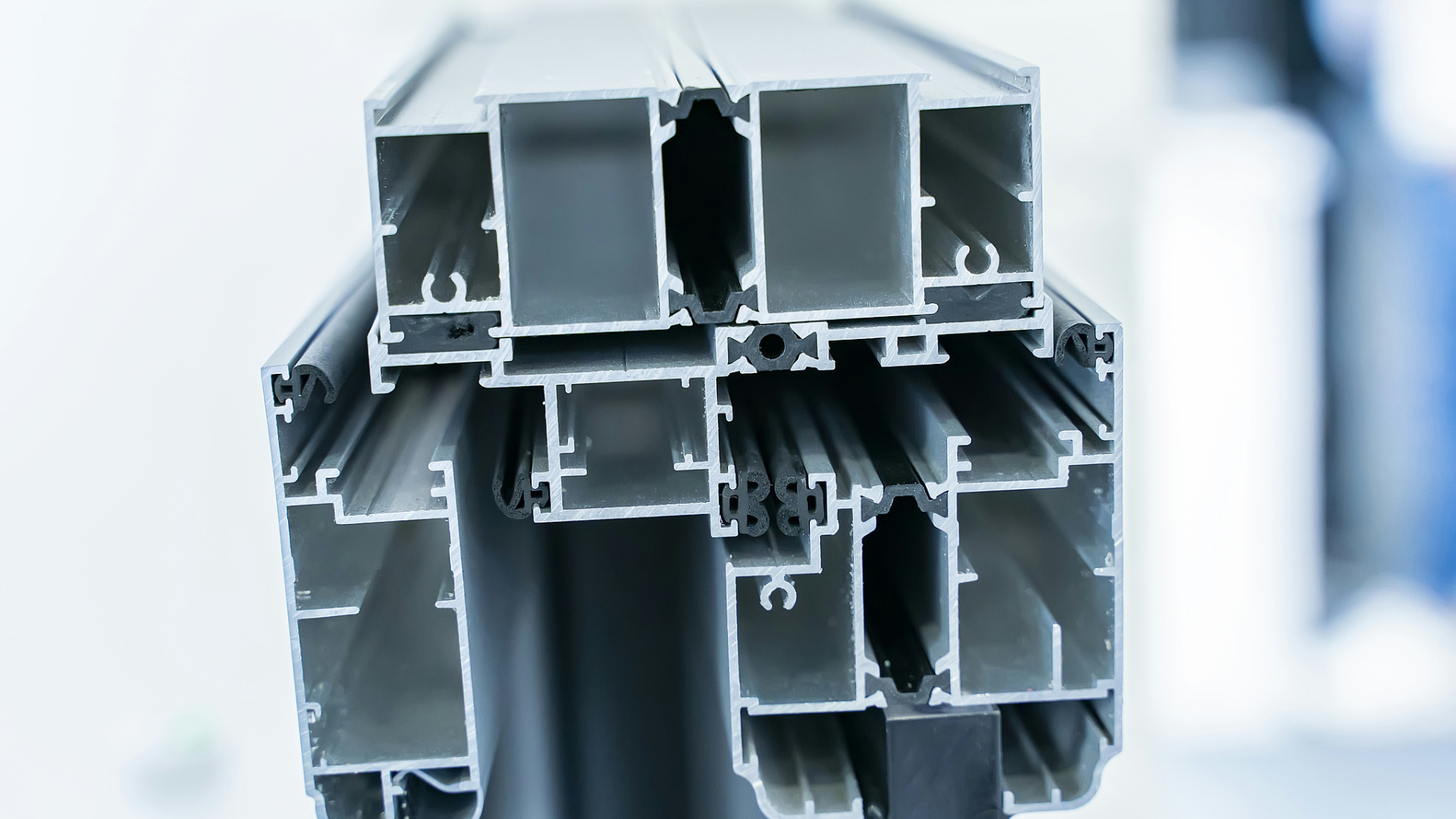

Next, look at your profile’s shape. A simple solid rod has a low circumscribing circle diameter (CCD) and a thin surface area touching the die. A complex, multi-void hollow profile with thin walls is a different beast entirely. It presents more resistance and requires a higher, more consistent force to fill the die legs properly without tearing.
2. The All-Important Extrusion Ratio
This is the heart of the calculation. The extrusion ratio (ER) is a measure of how much the billet is deformed. It’s calculated as the area of the container divided by the total area of the extruded profiles.
A high ER (e.g., 80:1) means a large billet is being pushed into a very small profile area. This requires high pressure.
A low ER (e.g., 10:1) requires less force.
There’s a golden rule here: each alloy has a minimum extrusion ratio needed to achieve a sound, fully compacted product and a maximum ratio where the force required exceeds the press's capacity or causes excessive heat and tearing. You must land within this window.
3. Finding the Balance: Quality vs. Cost
This is where the business decision comes in.
Too Much Force: Using a massive 5000-ton press for a simple profile that only needs 800 tons is incredibly inefficient. You’re burning more energy, putting unnecessary wear on your tooling and your aluminum profile extrusion press machine, and your cost per pound will skyrocket. It’s like using a sledgehammer to crack a nut.
Too Little Force: This is the far greater danger. Insufficient tonnage will fail to push the metal through the die, leading to:
Incomplete filling: The profile won't form to its full shape.
Poor surface finish: A rough, torn appearance.
Welding defects: In hollow profiles, the seams will be weak.
Press Stalls: The press stops under the load, damaging the billet and potentially the tooling.
The goal is to select a press with a force rating that is 10-20% above your calculated maximum requirement. This provides a safety buffer for variations in billet temperature or alloy composition without venturing into wasteful overkill.
Partnering for Success
These calculations can seem daunting. This is where experience matters. A trusted partner doesn’t just sell you a machine; they help you optimize your entire process.
For instance, the engineers at Wonsten Group often work with clients to analyze their profile designs and target alloys before recommending a specific press. They understand that the right aluminum profile extrusion press machine is a system where the press force, billet heater, handling systems, and downstream equipment must all be in harmony. Their approach is to provide a solution that ensures reliability and maximizes your output quality and profit margins, not just to make a sale.
The Bottom Line
Selecting the right press force is a critical blend of science and practical experience. By carefully evaluating your alloy, the profile’s complexity, and the extrusion ratio, you make an informed decision. Don't just guess. Leverage engineering formulas and consult with experts who can provide real-world insights.
Making the correct choice upfront ensures your production is efficient, your product is perfect, and your bottom line stays healthy.
